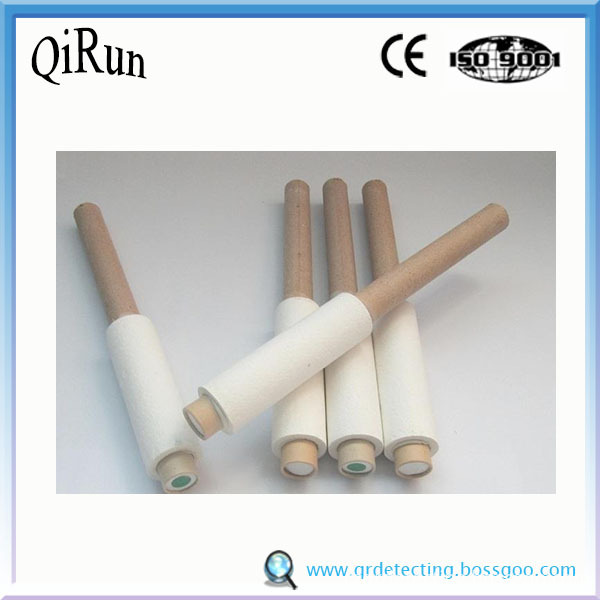

Molten Iron Sampler is made of fiber which is high quality and high temperature resistance. It is dedicated to collect metal liquid from furnace or ladle for chemical analysis. The sampler could be resistant to extreme cold and hot and there will be no cracks, which means that it can be used repeatedly
Multi Immersion Thermocouple,Anti Splash Immersion Thermocouple,Foundry Multiple Use Thermocouple,Multi-used Immersion Thermocouple Cangzhou Qirun Detecting Instrument Co., Ltd. , http://www.qrdetecting.com
Â
Application
Specially designed for small craft batch production which is suitable for wood furniture, Kitchen Cabinet Door, Art embossed screen, Art windows, Embossed Craft, Photo Frame, Home Appliances Cabinet, sports goods, wood toys and other soft metals engraving. Â
Features
1. 10 Spindles on 2 independent Z-axis, each Z-axis is equipped with 5 spindles,  10 spindles working at same time, Greatly improved the working efficiency. Each spindle can be switched off /on seperately
2. Square steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time
3. Hiwin Linear square guide rail for all axis with high precision helical  gears pinion transmission which effectively improved the working speed on the premise of ensuring accuracy.
4. Z axis with high precision lead ball screw transmission, high precision and more durable.
5. Adopt China hybrid servo motor and driver, high precision working, ensured the high speed and long time working,
6. Y axis is with dual motors driven. The load-free speed is more than 25000mm/min. Matched with large power spindle, obviously improved the working speed.
7. High variable speed 2.2kw water cooling spindle, each spindle has auto calibration fixture, more conveient for each one Z-axis 0 point setting,  bigger torque, longer life, strong cutting ability and continuous working for long time.
8. Original PCI NcStudio control system with its characteristic pre-calculation rule, fully excavates potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working. Which is doing well in Various application industry for its excellent control technique, capable for not only batch production but also personalized fabrication.
9.  Semi-auto-Lubricated oil path system more convenient for maintenance.
10. Favorable compatibility with various Cam softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
11. With the function of Break-point memory ,power failure resuming and automatic home/origin correction function Effectively ensure long time working precision.
Technical parameters
Effective working area
2500(X)mm*2200(Y)mm*200(Z)mm
Materials
More thickness steel pipe welded machine holder bed, cast iron gantry
Working table
Aluminum T slot working table
Moving type
Gantry moving
Guide rail
Linear square guide rail ( Hiwin, Taiwan)
Transmission
Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode
China hybrid servo motor and driver for XYZ-axis
Spindle motor
2.2kw water cooling, 10pcs
Spindle speed
0-24000rpm
Inverter
Sunfar, Taiwan
Voltage
AC 380V+ 10%, 50/60Hz, three phases or
AC 220V+Â 10%, 50/60Hz, single phase
Traveling speed
>25000mm/min
Engraving speed
>12000mm/min
Machine accuracy
0.03mm
Control system
Original PCI NcStudioÂ
Suitable software
Artcam, Type3, Ucancam V9,etc
Carving Instructions
G code *Uoo *mmg *plt HPGL
Running environment temperature
0-45 ºC
Relative humidity
30%-75%
Lubrication system
Semi-auto
Tool calibration
Auto
Certificate
CE
Reference Working Videos
https://www.youtube.com/watch?v=sTAJr7jMDvA&index=4&list=PLZ2SG5kTfvfNPAYz6owcFJqKwjT4Nt_p9
https://www.youtube.com/watch?v=u6QKrSitN8s&list=PLZ2SG5kTfvfNPAYz6owcFJqKwjT4Nt_p9&index=5
Â
Â
Â
       For more information, just feel free to contact us!
        Jinan Upgoal Mechanical Equipment Co.,Ltd
               www.cncplaserplasma.com
10 Heads 10 Spindles  Furniture CNC Engraving Cutting Machine 2500*2200mmÂ
Â
Application
Specially designed for small craft batch production which is suitable for wood furniture, Kitchen Cabinet Door, Art embossed screen, Art windows, Embossed Craft, Photo Frame, Home Appliances Cabinet, sports goods, wood toys and other soft metals engraving. Â
Features
1. 10 Spindles on 2 independent Z-axis, each Z-axis is equipped with 5 spindles,  10 spindles working at same time, Greatly improved the working efficiency. Each spindle can be switched off /on seperately
2. Square steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time
3. Hiwin Linear square guide rail for all axis with high precision helical  gears pinion transmission which effectively improved the working speed on the premise of ensuring accuracy.
4. Z axis with high precision lead ball screw transmission, high precision and more durable.
5. Adopt China hybrid servo motor and driver, high precision working, ensured the high speed and long time working,
6. Y axis is with dual motors driven. The load-free speed is more than 25000mm/min. Matched with large power spindle, obviously improved the working speed.
7. High variable speed 2.2kw water cooling spindle, each spindle has auto calibration fixture, more conveient for each one Z-axis 0 point setting,  bigger torque, longer life, strong cutting ability and continuous working for long time.
8. Original PCI NcStudio control system with its characteristic pre-calculation rule, fully excavates potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working. Which is doing well in Various application industry for its excellent control technique, capable for not only batch production but also personalized fabrication.
9.  Semi-auto-Lubricated oil path system more convenient for maintenance.
10. Favorable compatibility with various Cam softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
11. With the function of Break-point memory ,power failure resuming and automatic home/origin correction function Effectively ensure long time working precision.
Technical parameters
Effective working area
2500(X)mm*2200(Y)mm*200(Z)mm
Materials
More thickness steel pipe welded machine holder bed, cast iron gantry
Working table
Aluminum T slot working table
Moving type
Gantry moving
Guide rail
Linear square guide rail ( Hiwin, Taiwan)
Transmission
Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode
China hybrid servo motor and driver for XYZ-axis
Spindle motor
2.2kw water cooling, 10pcs
Spindle speed
0-24000rpm
Inverter
Sunfar, Taiwan
Voltage
AC 380V+ 10%, 50/60Hz, three phases or
AC 220V+Â 10%, 50/60Hz, single phase
Traveling speed
>25000mm/min
Engraving speed
>12000mm/min
Machine accuracy
0.03mm
Control system
Original PCI NcStudioÂ
Suitable software
Artcam, Type3, Ucancam V9,etc
Carving Instructions
G code *Uoo *mmg *plt HPGL
Running environment temperature
0-45 ºC
Relative humidity
30%-75%
Lubrication system
Semi-auto
Tool calibration
Auto
Certificate
CE
Reference Working Videos
https://www.youtube.com/watch?v=sTAJr7jMDvA&index=4&list=PLZ2SG5kTfvfNPAYz6owcFJqKwjT4Nt_p9
https://www.youtube.com/watch?v=u6QKrSitN8s&list=PLZ2SG5kTfvfNPAYz6owcFJqKwjT4Nt_p9&index=5
Â
Â
Â
       For more information, just feel free to contact us!
        Jinan Upgoal Mechanical Equipment Co.,Ltd
               www.cncplaserplasma.com
10 Heads 10 Spindles Furniture CNC Engraving Cutting Machine 2500*2200mm
Model NO.: UG-2522-10
Customized: Customized
Condition: New
Color: Customized
Effective Working Area: 2500(X)mm*2200(Y)mm*200(Z)mm
Working Table: Aluminum T Slot Working Table
Guide Rail: Linear Square Guide Rail ( Hiwin, Taiwan)
Transmission: Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
Driving Mode: China Hybrid Servo Motor and Driver for Xyz-Axis
Spindle Motor: 2.2kw Water Cooling, 10PCS
Spindle Speed: 0-24000rpm
Inverter: Sunfar
Control System: Original PCI Ncstudio
Lubrication System: Semi-Auto
Trademark: UPGOAL
Transport Package: One Plywood Case
Specification: 2900*2280*1800mm, 1600kgs
Origin: Jinan City, Shandong Province, China
HS Code: 84659900
